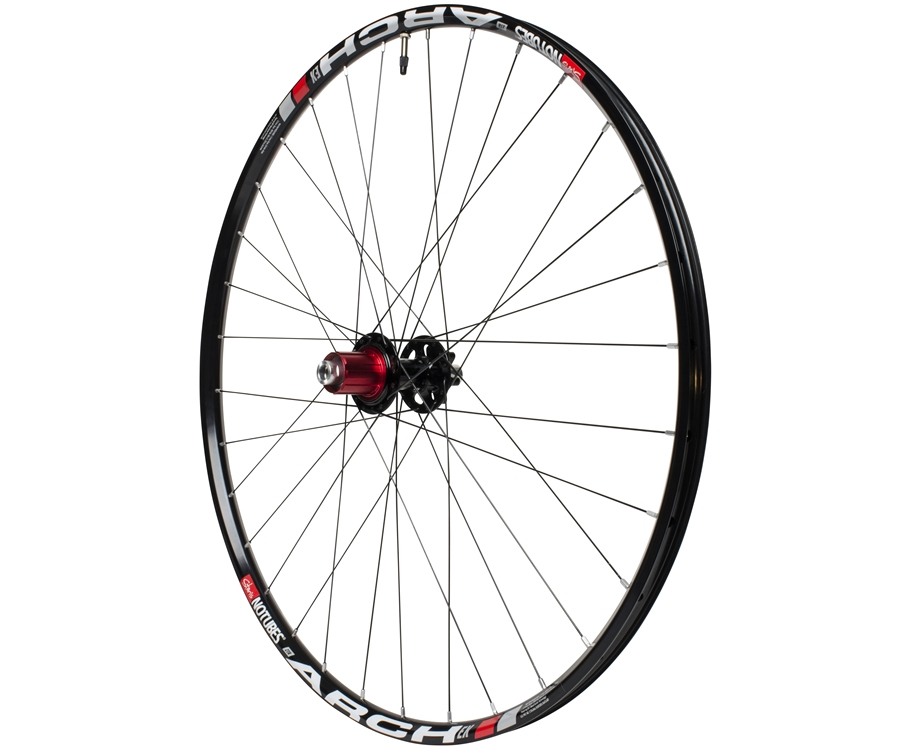

Stan's No Tubes ZTR Arch EX Wheel (Rear, 27.5-inch)
Image may differ.
Details
Designed for aggressive XC use, Stan's ZTR Arch EX Wheel loves technical trails. The "arch" rim shape is strong and stiff while keeping the weight low for a durable, responsive ride. Plus, the Arches are built up with Stan's 3.30 hubs and DT Swiss spokes to keep you rolling quick. And, this slick wheel uses Stan's BST technology for easy tubeless conversions, while the rim's wide internal profile and lowered sidewalls boost tire volume for enhanced traction.
|
|
|
Stan's NoTubes BST design creates a tight tubeless seal between the rim wall and tire bead. The inner rim wall is the same size and shape as the tire bead. It's also shorter, which increases the volume of the tire.
|
Stan's recommended max rider weight: 230 pounds
Specs
| Size(s) | 650B |
|---|---|
| Rim Material | Aluminum |
| Rim Depth | 15.8mm |
| Rim Width | Internal: 21mm; External: 24.6mm |
| Hub(s) | Stan's 3.30 QR |
| Spokes (Front/Rear) | DT Swiss |
| Holes (Front/Rear) | 32 |
| Nipples | DT Swiss aluminum, silver |
| Axle(s) | Quick-release OR 12x142mm rear |
| Weight (Front/Rear) | 1685 grams/pair |
| Lacing (Front/Rear) | 3-cross |
| Cassette Compatibility | Shimano/SRAM (cassette sold seperately) |
| Extras | Stan's yellow rim tape and tubeless valves |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| 142mm Thru-axle | 847746009245 | SWAR70009 | 210000045493 |
